Electrochemistry (electropolishing of stainless steel 316L)

Electrochemical AFM (EC-AFM)
Integration of Electrochemistry and Atomic Force Microscopy

The Electrochemical AFM (EC-AFM) module from CSInstruments is a cutting-edge solution that seamlessly combines electrochemical measurements with high-resolution atomic force microscopy. This innovative technology allows researchers to perform simultaneous electrochemical and topographical analysis at the nanoscale, offering unprecedented insights into material properties and reactions.

Key Features

  • Simultaneous Measurements: Conduct electrochemical experiments while imaging surface topography

  • High Resolution: Achieve sub-nanometer resolution in AFM imaging

  • Versatile Electrochemistry: Compatible with various electrolytes and electrode configurations

  • Wide Scan Range: Up to 100 µm in XY direction and 10 µm in Z direction

  • Advanced Software: Integrated control suite for AFM and electrochemical measurements

  • Flexible Setup: Adaptable to different sample types and experimental conditions

Benefits of EC-AFM Mode

  1. Comprehensive Analysis: Obtain topographical and electrochemical data simultaneously

  2. Enhanced Research Capabilities: Uncover new insights into material behaviors at the nanoscale

  3. Efficient Workflow: Streamlined setup and operation reduce experimental time and complexity

  4. Advanced Insights: High-resolution imaging coupled with precise electrochemical data

  5. Versatility: Adapt to a wide range of research applications and sample types

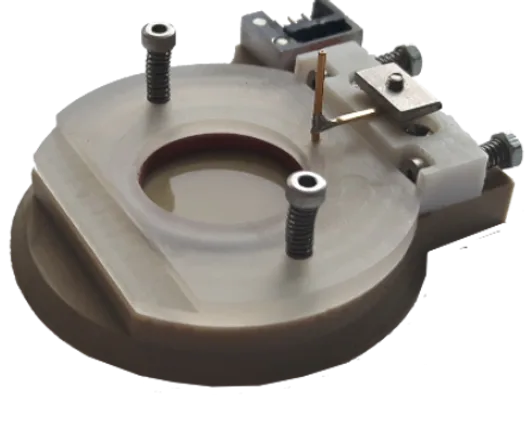

electrochemical afm technique

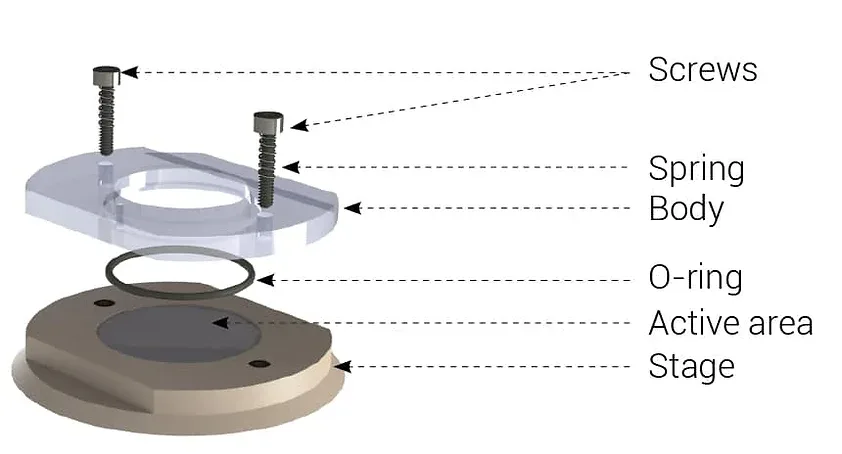

liquid atomic force microscopy

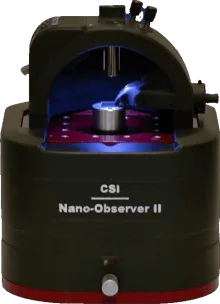

Nano Observer II Advanced AFM

Check the
Nano-Observer II page for more details about the modes

Application fields

Corrosion Studies

  • Investigate corrosion mechanisms at the nanoscale

  • Evaluate protective coatings and their effectiveness in real-time

Battery Research

  • Analyze electrode materials and interfaces during electrochemical cycling

  • Study solid-electrolyte interphase (SEI) formation and evolution

Sensor Development

  • Develop and test electrochemical sensors with precise topographical feedback

  • Optimize sensor surfaces for enhanced sensitivity and selectivity​

​Surface Chemistry

  • Examine surface reactions and modifications with high spatial resolution

  • Investigate catalytic processes at the molecular level

Materials Science

  • Characterize new materials and their electrochemical behaviors in detail

  • Study the impact of nanostructures on electrochemical properties
