Phase Imaging (AC Mechanical Contrast)
Visualizing Nanoscale Mechanical Properties
Phase Imaging, also known as AC Mechanical Contrast, is a powerful Atomic Force Microscopy (AFM) mode used to map material properties like stiffness, adhesion, and viscoelasticity. By analyzing the phase shift of the oscillating probe, this mode reveals nanoscale variations in mechanical contrast, making it ideal for materials science, polymers, and nanotechnology applications.
Key Features
-
Material Property Mapping: Quantify stiffness, adhesion, and viscoelastic differences with high sensitivity.
-
High Spatial Resolution: Detect nanoscale variations in mechanical properties.
-
Non-Destructive Imaging: Suitable for fragile and soft samples.
-
Multimodal Integration: Combine with other AFM modes for comprehensive analysis.
-
Versatility: Works in air, liquid, or controlled environments.

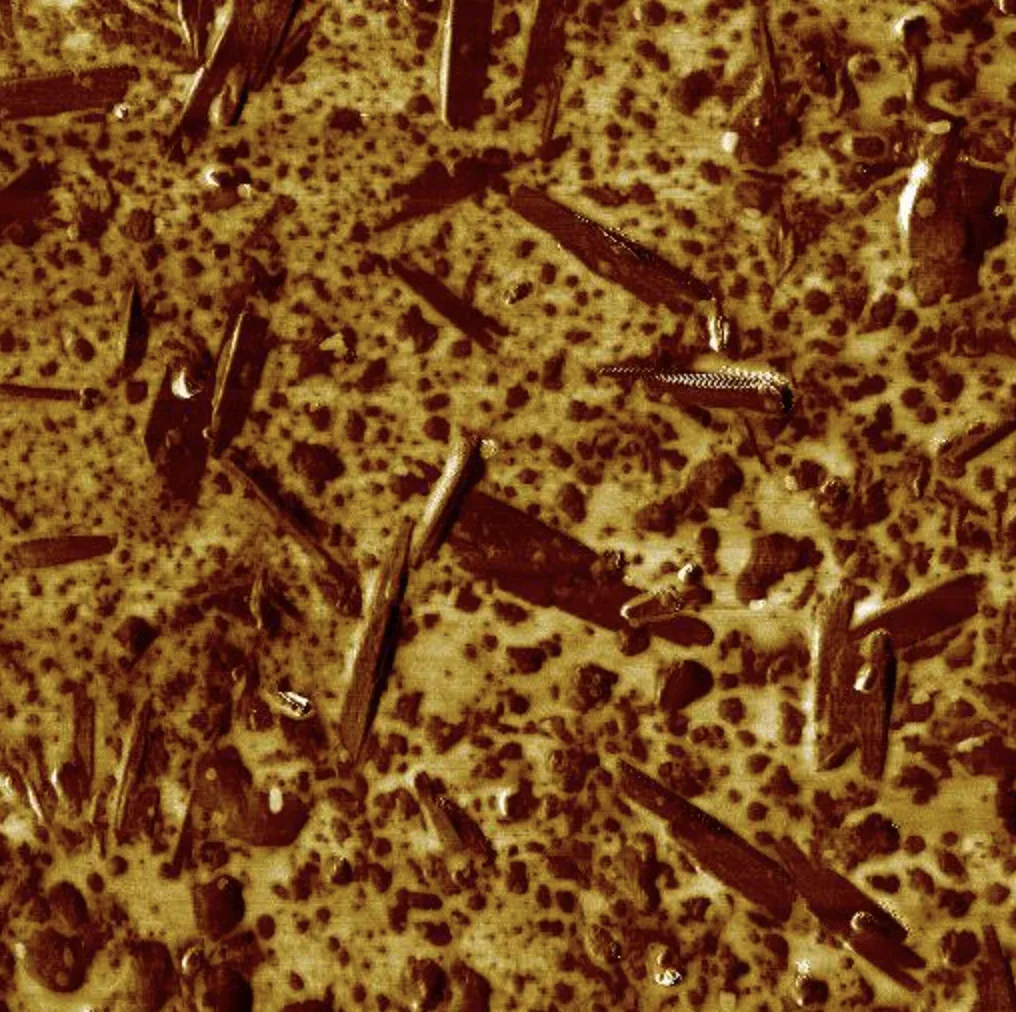

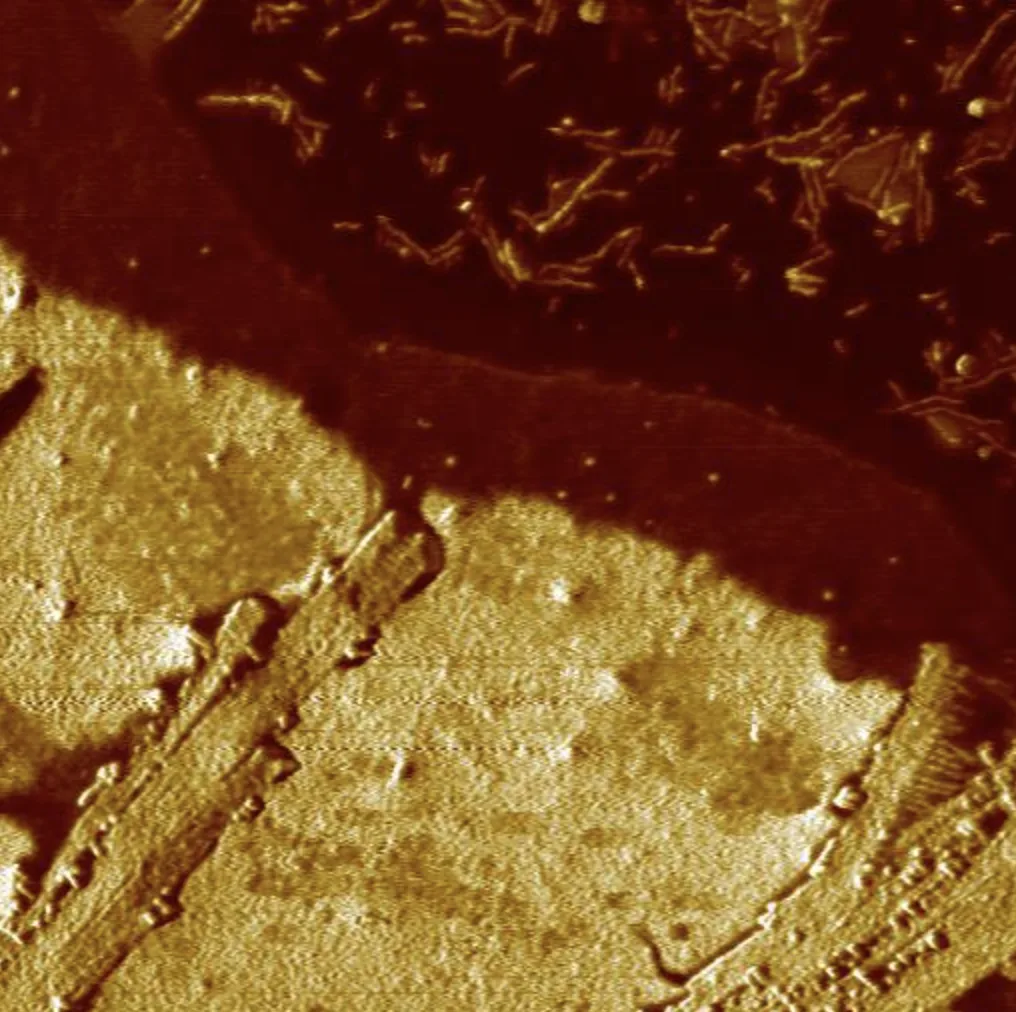

AAC Grains AFM Scan
Phase imaging mode reveal surface structure and material property variations across a 2 µm area
Applications of Phase Imaging
Polymers and Composites
-
Map stiffness and adhesion variations in polymer blends.
-
Analyze phase separation in composite materials.
Biological Samples
-
Study the mechanical properties of cells and tissues.
-
Investigate biomaterial surfaces for medical applications.
2D Materials and Nanotechnology
-
Characterize nanoscale properties of graphene and other 2D materials.
-
Evaluate the homogeneity of thin films and coatings.
