In short
- Soft ResiScope™ measures resistance and current from 10² to 10¹² Ω on soft and fragile conductive samples, using intermittent contact instead of continuous contact.
- The tip touches each point with a constant force and is never dragged across the surface: no friction, no sample damage from shear and less tip wear.
Soft Interaction Control
The switch happens mid-scan
On a battery electrode, the scan changes from contact ResiScope to Soft Interaction Control halfway through: Soft IC improves the measurement without scratching the surface.
- No shear on the particle, no scratching
- Structure inside the particle becomes readable
- Resistance: 314 kΩ to 902 GΩ
Application fields
Soft ResiScope™ is for samples that contact mode would scratch or push aside: battery electrodes and separators, solid electrolytes, organic films, polymers, 2D materials and biological samples.
Key Features
Soft ResiScope
- Non-Destructive Measurements: Ideal for fragile and soft conductive samples
- Wide Measurement Range: Resistance from 10² to 10¹² ohms
- No Friction: Prevents sample damage and tip wear
- Constant Force: Ensures quantitative electrical measurements
- Intermittent Contact: Optimizes electrical measurement while preserving tip and sample integrity
Soft Intermittent Contact : The 3rd AFM mode
- Combines precision of contact AFM with dynamic capabilities of resonant modes
- Ideal for delicate and soft materials
- Detailed mechanical and electrical measurements with minimal sample disturbance
- \1, Soft PFM, Soft ResiScope and Soft SThM
Soft IC Mode
- Adhesion
- Stiffness
- Young’s Modulus
Soft ResiScope
- Integrates intermittent contact AFM with detailed resistance and current mapping
- Wide range of resistance measurements (10² to 10¹² ohms)
- Excellent for fragile conductive samples and advanced material studies
Gallery

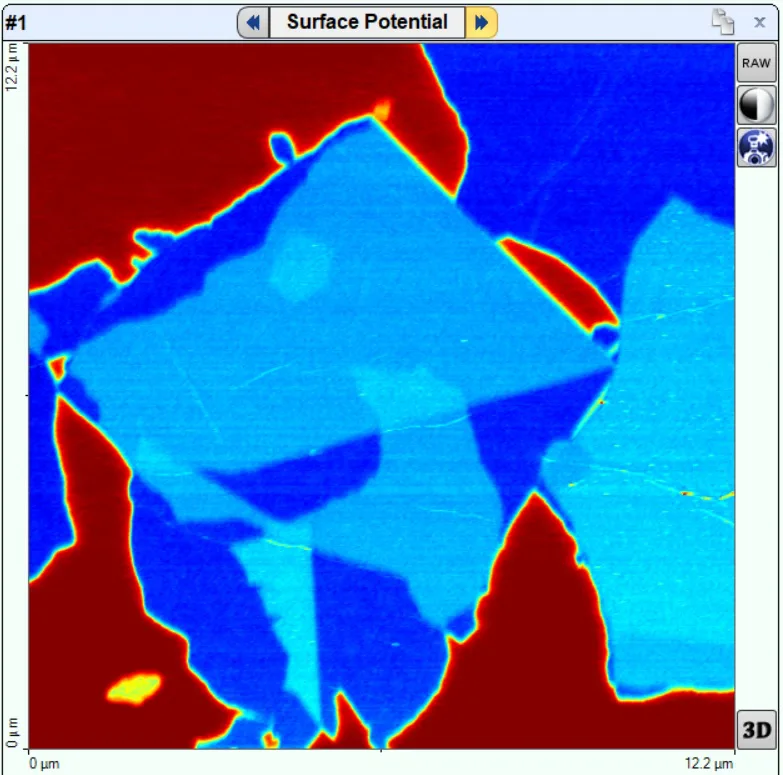

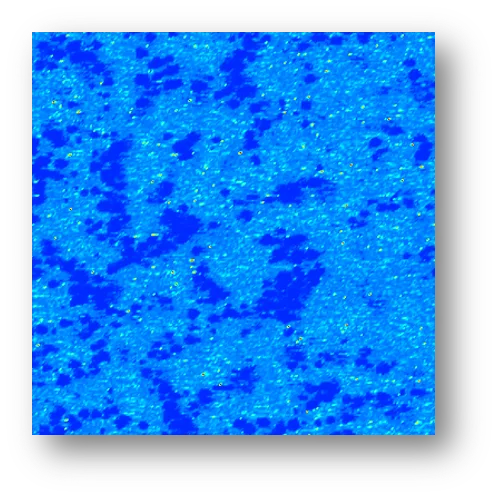

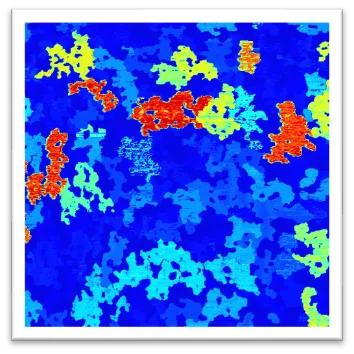

ResiScope™ results
How does Soft ResiScope work?
Soft ResiScope operates on an intermittent contact principle:
- The AFM probe makes brief, controlled contact with the sample
- During contact, a constant force is applied, allowing precise resistance and current measurements
- The tip is then retracted and moved to the next measurement point
- This cycle repeats, creating a comprehensive map of electrical properties without damaging the sample
Specifications
- Measurement Range: 10² to 10¹² ohms
- Compatibility: Nano-Observer AFM systems
- Supported Modes: Intermittent contact
- Data Output: Simultaneous topography and electrical property mapping
Quantitative Measurements
Soft ResiScope provides quantitative measurements comparable to standard ResiScope in contact mode:

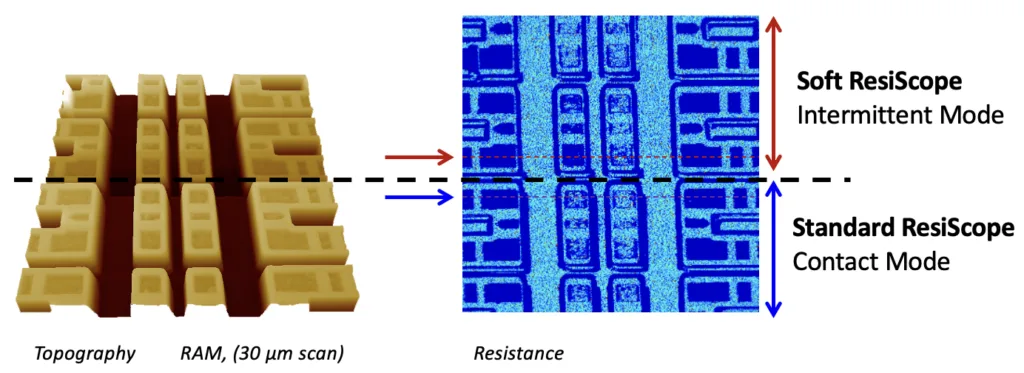

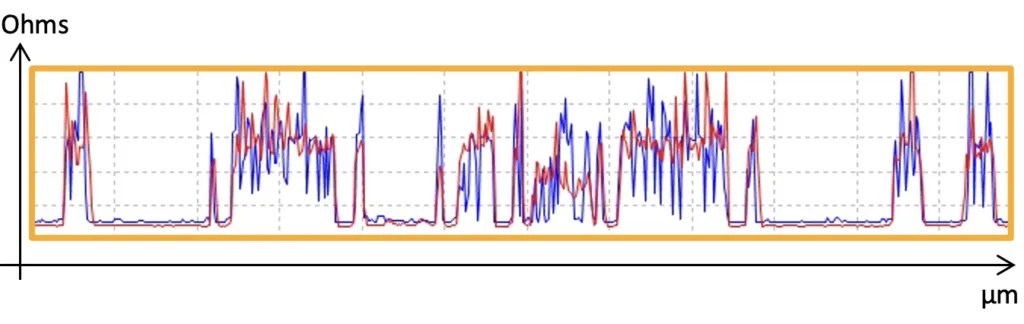

- Identical Results: Topography and resistance signals match between Soft ResiScope and contact mode ResiScope on standard electrical samples (e.g., SRAM)
- High Resolution: Maintains lateral resolution while ensuring quantitative measurements
Advantages Over Traditional Methods
Compared with contact-mode ResiScope™, Soft ResiScope™ removes friction, which protects both the sample and the tip. On fragile samples it gives images comparable to oscillating mode, with a resistance value at every point.
Soft ResiScope vs. Standard ResiScope
Soft ResiScope vs. Oscillating/Contact Modes
- Sample Preservation: Prevents surface damage common in contact mode
- Equivalent Results: Produces data comparable to oscillating mode on fragile samples
- Versatility: Suitable for a wide range of materials, from polymers to biological samples
