ResiScope™ III: Revolutionary Nanoscale Electrical Characterization for Advanced Materials Research

The ResiScope™ III represents a groundbreaking advancement in nanoscale electrical characterization for Atomic Force Microscopy (AFM). This state-of-the-art module delivers unprecedented measurement precision across an extensive resistance and current range, powered by intelligent, real-time adaptive electronics.

Designed for researchers in renewable energy, semiconductors, advanced materials, and emerging nanomaterials, the ResiScope™ III overcomes the limitations of traditional conductive AFM techniques, providing artifact-free measurements with superior accuracy and resolution. From photovoltaics to 2D materials, this revolutionary technology is transforming how scientists characterize electrical properties at the nanometer scale.

Introduction: The Evolution of Nanoscale Electrical Measurement

Atomic Force Microscopy has revolutionized our ability to measure electrical properties at the nanoscale, offering nanometric lateral resolution critical for advanced materials research. Traditionally, these measurements relied on passive electronics for techniques such as Conductive AFM (c-AFM) and Scanning Spreading Resistance Microscopy (SSRM).

The ResiScope™ III significantly enhances these capabilities through an extensive measurement range for both resistance and current, unmatched precision through processor-driven adaptive range adjustment, and real-time intelligent regulation that maintains accuracy across diverse materials.

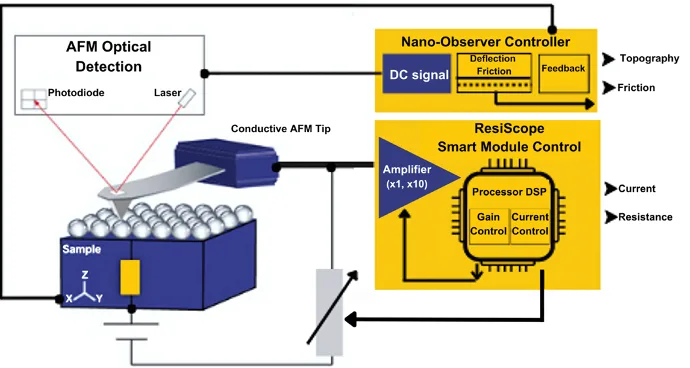

Working principle and system architecture of ResiScope™ III

This advanced module is optimized for critical research areas including renewable energy applications (photovoltaics, battery technology), semiconductor characterization and development, advanced materials analysis (oxides, metals, conductive polymers), and nanomaterials and 2D materials research.

Unprecedented Measurement Range and Capabilities

The ResiScope™ III offers an extraordinary measurement spectrum with resistance range from 10² to 10¹² Ω (10 orders of magnitude) and current range from 50 fA to 1 mA. This eliminates the need for multiple instruments when characterizing diverse materials.

At the core of ResiScope™ III is its intelligent processor that selects the optimal amplifier in real time based on local sample conductivity. This enables consistent measurements at standard AFM scan speeds (1-3 lines/second) while maintaining accuracy across the entire measurement range—even when transitioning between highly conductive and resistive regions.

ResiScope™ III vs Traditional Conductive AFM: A Fundamental Difference

The ResiScope™ III represents a fundamental advancement over traditional Conductive AFM techniques, addressing core limitations that have long constrained researchers in nanoscale electrical characterization.

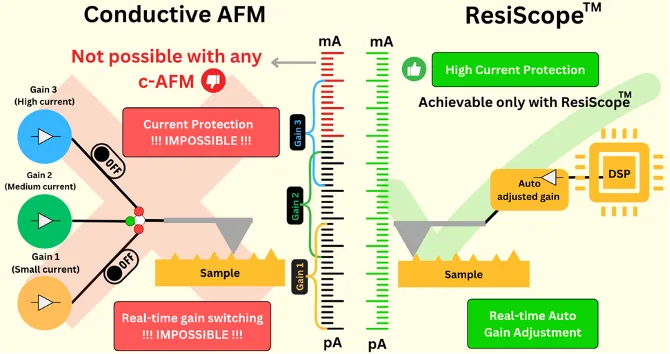

Technical comparison between C-AFM and ResiScope technology

Conventional C-AFM systems face inherent hardware limitations. The conventional approach relies on fixed gain settings across different current ranges with no capacity for dynamic adjustment during scanning. This architecture makes both current protection and real-time gain switching physically impossible.

In contrast, ResiScope™ technology employs a sophisticated DSP (Digital Signal Processor) system that continuously monitors and adjusts gain settings in real-time during measurement. This intelligent microsecond-level adaptation allows seamless transitions between different conductivity regions while maintaining optimal signal quality across the entire pA to mA range.

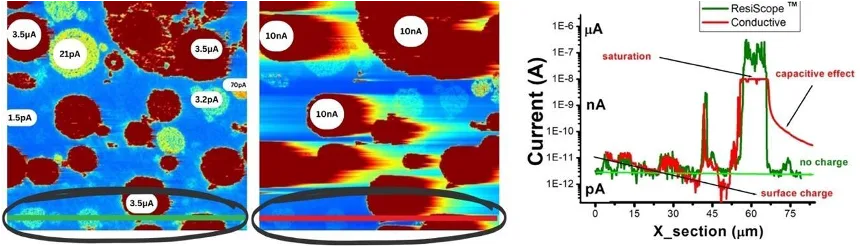

Comparison showing C-AFM artifacts vs ResiScope™ III clean measurements]

Key advantages include enhanced visualization providing superior imaging of highly conductive areas without saturation effects, elimination of artifacts by avoiding slope effects from surface charging, wider measurement range capturing both femtoamps and milliamps with precision, and consistent performance without capacitive discharge effects.

Soft ResiScope™: Gentle Characterization for Sensitive Materials

Soft materials and sensitive samples present unique challenges due to their susceptibility to tip-induced damage during scanning. Soft ResiScope, combining Soft Intermittent Contact Mode with ResiScope™ III, addresses these challenges by minimizing intrinsic friction, providing an ideal solution for sensitive materials, maintaining constant force for quantitative measurements, and capturing adhesion data simultaneously with electrical properties.

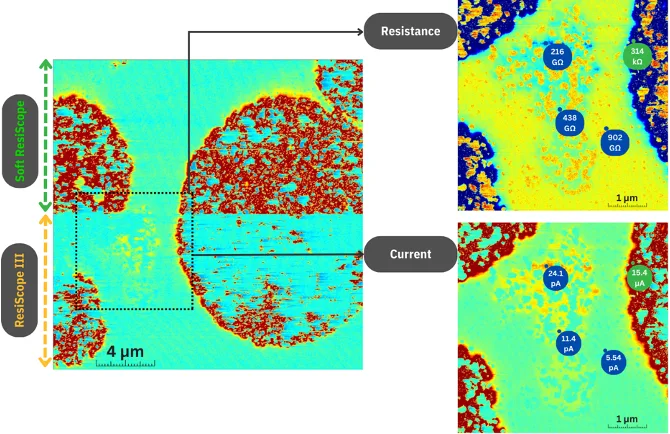

Comparison between standard ResiScope III and Soft ResiScope]

This combined mode represents a significant advancement for characterizing sensitive materials like organic semiconductors, biological samples, and emerging flexible electronics.

Multi-Modal Integration: Comprehensive Material Analysis

The ResiScope™ III seamlessly integrates with key AFM modes including HD-KFM, c-AFM, and PFM while maintaining continuous operation. This eliminates the need for cantilever replacement, sample transfers, laser readjustments, or software restarts.

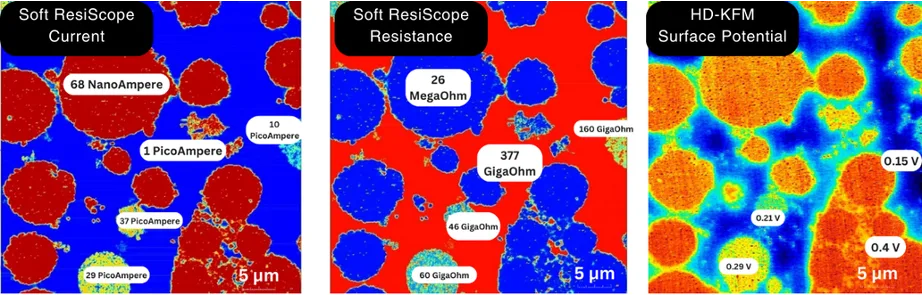

Multi-modal analysis showing Soft ResiScope and HD-KFM III on same sample

This integrated approach enables precise correlation between resistance/current measurements and local surface potential, identification of electrochemically active sites, and improved research efficiency through multiple characterization modes on identical sample areas.

Application Spotlight: Organic Solar Cells

Organic solar cells have gained significant attention due to their low cost, flexibility, and suitability for large-scale processing. However, their characterization presents unique challenges due to their soft nature.

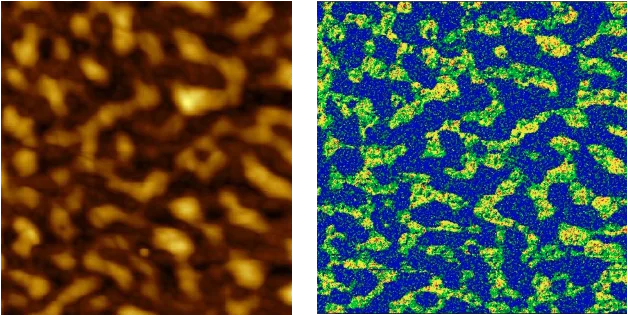

Topography and ResiScope™ III conductivity mapping of organic solar cell]

ResiScope™ III clearly identifies conductive domains invisible in topographical data, revealing distinct regions of varying conductivity with high precision. For P3HT/PMMA solar cells, current mapping using Soft ResiScope at 10×10 μm clearly differentiates conductive P3HT domains from less conductive PMMA regions, with domain sizes ranging from 250–400 nm.

Application Spotlight: Perovskite and Silicon Solar Cells

For perovskite solar cells, ResiScope™ III provides detailed resistance and current distribution across 10 orders of magnitude, highlighting variations in electrical behavior critical for device optimization.

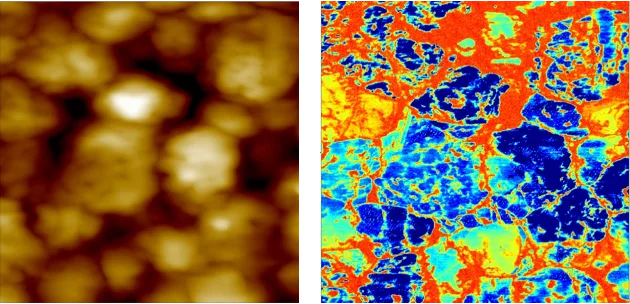

Perovskite solar cell topography and resistance mapping

For BSF silicon solar cells, high-resolution electrical mapping reveals current distribution with 30 nm resolution, showing excellent conductive stability across the surface—critical for optimizing charge transport efficiency.

Application Spotlight: Semiconductor Doping Analysis

ResiScope™ III provides powerful solutions for semiconductor analysis, enabling high-resolution electrical characterization essential for modern device development.

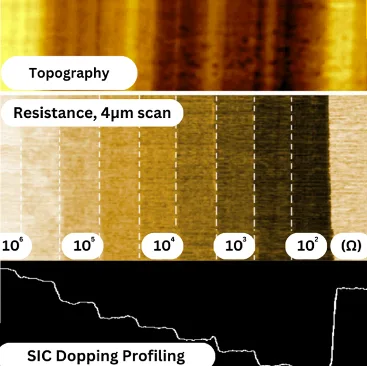

SiC sample doping profiling with resistance mapping

The capability to map resistance variations from 10^6 Ω to 10^2 Ω makes ResiScope™ III ideal for detailed doping profiling, defect identification, complex junction characterization, and manufacturing quality analysis.

Application Spotlight: 2D Materials Characterization

ResiScope™ III excels in studying graphene, MoS₂, and other emerging nanomaterials, providing critical insights into layer-dependent conductivity.

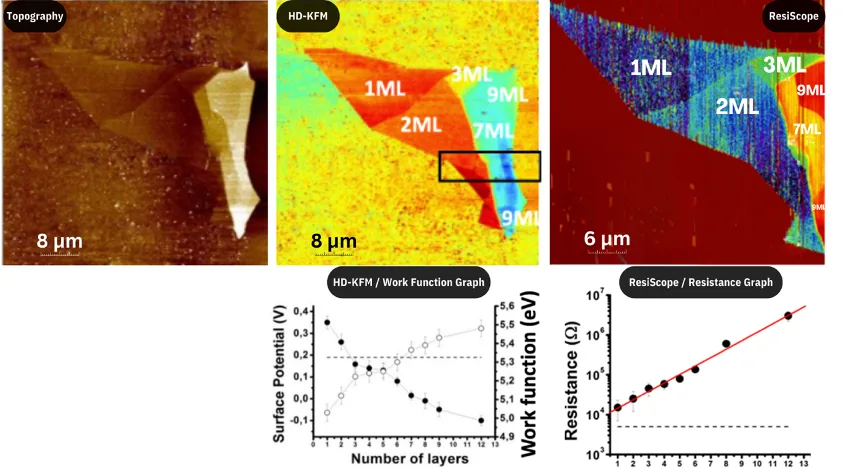

Multi-modal MoS₂ analysis showing topography, resistance, and surface potential]

For MoS₂, ResiScope™ shows higher resistance in monolayers, decreasing exponentially with layer thickness. Combined with HD-KFM surface potential mapping, this dual analysis on the same location links structural and electronic properties, advancing nanoelectronic and optoelectronic design.

Conclusion: Transforming Nanoscale Electrical Characterization

ResiScope™ III represents a significant advancement in electrical characterization at the nanoscale. Its wide measurement range, high sensitivity, and versatility make it an indispensable tool for researchers across various fields.

A key advantage is the ability to perform multiple measurement modes on the same scan area without changing tips or experimental conditions, enabling seamless transitions between ResiScope, Soft ResiScope, and HD-KFM III measurements.

When compared to traditional techniques like SSRM and C-AFM, ResiScope™ III demonstrates superior performance through wider measurement range, elimination of common artifacts, and more accurate conductivity mapping. By providing comprehensive and reliable electrical measurements with unprecedented precision and versatility, ResiScope™ III is poised to accelerate the development of next-generation materials and devices across multiple industries and research domains.
