Unlocking the Nanoscale: How HD-KFM Technology is Revolutionizing 2D Materials Characterization

Since the groundbreaking discovery of graphene in 2004, two-dimensional (2D) materials have captured the imagination of materials scientists worldwide. These atomically thin materials—including graphene, hexagonal boron nitride (hBN), and molybdenum disulfide (MoS₂)—exhibit extraordinary electrical, mechanical, and optical properties that promise to revolutionize everything from flexible electronics to quantum computing.

However, there's a critical challenge: how do you accurately characterize materials that are just one atom thick?

Traditional microscopy techniques simply cannot provide the resolution and sensitivity needed to map the electronic properties of these nanoscale wonders. This is where Atomic Force Microscopy (AFM), particularly the innovative High-Definition Kelvin Probe Force Microscopy (HD-KFM) mode, becomes absolutely essential.

The CSInstruments Nano-Observer AFM series represents a quantum leap forward in nanoscale characterization, offering researchers unprecedented insights into the surface morphology and electrical properties of 2D materials at resolutions previously thought impossible.

What Makes HD-KFM Technology Different?

For years, conventional Kelvin Probe Force Microscopy (KFM) has struggled with resolution limitations when characterizing 2D materials. The difference between standard KFM and HD-KFM is nothing short of transformative.

The CSInstruments Nano-Observer introduces HD-KFM technology through innovative signal processing and optimization. As demonstrated in comparison images, HD-KFM provides dramatically improved visualization of graphene layers. Standard KFM mode shows limited contrast between different layer thicknesses, while HD-KFM mode reveals precise layer boundaries and subtle electronic variations across the sample with exceptional clarity.

Key advantages of HD-KFM include:

• Operates at much higher frequencies (350-400 kHz vs ~17kHz)

• 20 to 30 times more measurement cycles per scan

• Enhanced sensitivity using eigenmode detection

• One-click auto-tune algorithm for optimal settings

• Sharp, accurate boundary mapping with exceptional clarity

The practical implications are substantial. Researchers can now detect subtle electronic property variations at layer boundaries with unprecedented precision, identify defects and contamination at the nanometer scale, characterize heterojunctions with detail that was previously impossible, and accelerate materials development from fundamental research to functional devices.

Revealing Hidden Structures: Moiré Patterns in Hexagonal Boron Nitride

One of the most fascinating phenomena in 2D materials research is the moiré superlattice—a pattern that emerges when two crystal lattices with slight differences in periodicity or orientation overlap.

When hexagonal boron nitride (hBN) layers are rotated relative to each other, atomic lattice interference generates a moiré pattern that fundamentally modifies the local electronic structure. This enables bandgap engineering for customized electronic properties, emergence of correlated quantum states in graphene/hBN heterostructures, and novel quantum phenomena promising for next-generation devices.

The Nano-Observer's HD-KFM technology reveals these effects through surface potential mapping with unprecedented resolution. The system provides multi-scale characterization from large-scale domain structure analysis (5 μm scale) showing overall sample architecture, to mid-range detailed mapping (2 μm scale) of domain boundaries and transitions, down to high-resolution moiré pattern visualization with ~100 nm triangular domains at 1 μm scale.

Multi-scale HD-KFM analysis of folded hBN showing moiré patterns

Beyond surface potential mapping, the Nano-Observer integrates Piezoresponse Force Microscopy (PFM) with HD-KFM, allowing researchers to correlate electronic properties via surface potential variations, structural properties through domain structure mapping, and electromechanical responses via PFM signal analysis. This multi-modal approach enables measurements on the exact same sample area with perfect spatial registration—a critical capability that was missing in conventional characterization workflows.

Layer-Dependent Properties in Graphene

One of the most remarkable aspects of 2D materials is how dramatically their properties change with layer count. A single layer of graphene behaves completely differently from two layers, which differs from three layers, and so on.

The Nano-Observer AFM with HD-KFM provides unprecedented visualization of these layer-dependent variations, enabling researchers to precisely identify monolayer (1ML), bilayer (2ML), trilayer (3ML), and four-layer (4ML) regions, map work function differences across the sample with intuitive color contrast, detect sharp, well-defined interfaces between regions with different layer counts, and correlate electronic structure directly with layer thickness.

Graphene layer analysis showing topography and HD-KFM surface potential map

Beyond single-flake analysis, HD-KFM provides deeper insights into stacked graphene layers, where interlayer interactions create complex electronic behaviors including charge redistribution between layers affecting local electronic density, screening effects where top layers shield electric fields from layers below, and moiré superlattice formation, particularly in twisted bilayer graphene at the "magic angle" of approximately 1.1 degrees.

Environmental factors also significantly influence 2D material properties. hBN substrates reduce charge inhomogeneity in graphene layers, molecular intercalation from water and oxygen modifies work functions, and surface contamination affects device performance and reliability.

MoS₂ Characterization: Dual-Technique Analysis with ResiScope™ and HD-KFM

Molybdenum disulfide (MoS₂), a prominent member of the transition metal dichalcogenide (TMD) family, exhibits unique layer-dependent electrical properties that make it a key material for nanoelectronics and optoelectronics.

Unlike graphene, MoS₂ possesses a tunable bandgap that changes with layer count. Monolayer MoS₂ functions as a direct bandgap semiconductor (~1.8 eV) with exceptional optical properties, while multilayer MoS₂ transitions to an indirect bandgap semiconductor with different electronic characteristics. This makes MoS₂ particularly valuable for applications in transistors, photodetectors, flexible electronics, and energy harvesting devices.

The Nano-Observer system provides synergistic electrical characterization through the combination of ResiScope™ and HD-KFM technologies. ResiScope™ maps resistance across an exceptional range (10² to 10¹² Ω), clearly distinguishing between conductive and insulating regions and revealing how conductivity changes exponentially with layer thickness. Meanwhile, HD-KFM measures work function shifts with nanometer-scale resolution, maps charge distribution across different layer counts, and reveals systematic changes in surface potential with layer thickness.

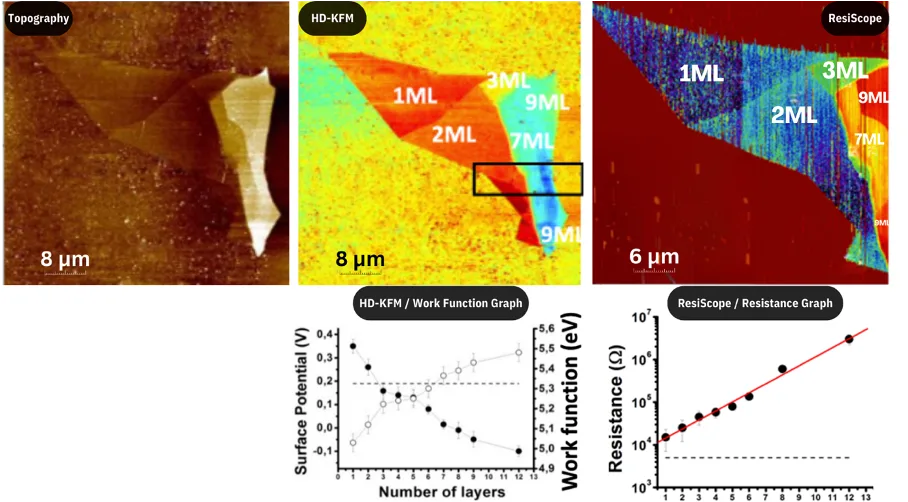

Layer-dependent MoS₂ analysis showing topography, HD-KFM, and ResiScope™ measurements with accompanying graphs

This dual-technique analysis provides complementary information that enables researchers to correlate structure and function, quantify layer dependencies with precise measurements of how properties scale with thickness, optimize device design by understanding which layer configurations produce desired characteristics, and accelerate development by reducing iteration cycles from months to weeks.

Conclusion: Transforming Nanoscale Research

The CSInstruments Nano-Observer AFM Series represents a paradigm shift in nanoscale characterization technology. By integrating multiple advanced measurement techniques within a single platform, this system enables discoveries that would be impossible with conventional AFM approaches.

Key advantages for researchers include unprecedented resolution with HD-KFM revealing electronic property variations at the nanometer scale, multi-modal analysis to correlate topography, electrical properties, and electromechanical responses, precision measurement with one-click optimization that eliminates manual tuning errors, quantitative data extraction of precise work functions, resistance values, and layer counts, and accelerated research that reduces characterization time while increasing data quality.

Applications span across industries including quantum computing for characterizing moiré superlattices and correlated quantum states, nanoelectronics for optimizing 2D material transistors and interconnects, optoelectronics for developing next-generation photodetectors and light-emitting devices, energy storage for understanding electrode materials at the atomic scale, and sensors for designing ultra-sensitive chemical and biological detection systems.

As we push the boundaries of what's possible with atomically thin materials, the need for advanced characterization tools becomes increasingly critical. The Nano-Observer AFM series doesn't just measure these materials—it reveals the fundamental relationships between structure and function that enable breakthrough innovations.

Whether you're researching twisted bilayer graphene for quantum applications, optimizing MoS₂ transistors for flexible electronics, or exploring hBN as an ultrathin insulator, HD-KFM technology provides the insights needed to transform promising materials into practical devices. The nanoscale revolution is here—and now we can finally see it in unprecedented detail.
